Heavy Duty Apron Plate Feeder Automatic for Ore Feeding

Ore Feeding Equipment Automatic Heavy Duty Apron Feeder Plate Feeder

Product Description

Plate feeder is a kind of conveying equipment which takes chain as traction component and chain plate as bearing component. It can convey various bulk materials along horizontal or inclined direction (inclination angle is less than 25 degrees). Because the load-bearing part and the operation part of the scale conveyor (plate feeder) are all made of metal material, it can convey materials with larger bulk density, larger size, sharp edges and strong abrasion to the conveyor compared with other continuous conveyors. Therefore, scale conveyor is an ideal equipment for conveying sharp, hot, bulky and corrosive materials in mining, building materials, metallurgy, coal and chemical industries.

Main Parameters

Advantages

1. Traction chain is plate chain (light and medium) or tank chain (heavy), with high strength and long service life;
2. The tail of the machine adopts spring spiral tensioning device, which can automatically adjust the tension of the traction chain;
3. Flexible process layout, can be placed on the ground or pit, can be installed horizontally or sloped, or can be installed horizontally and sloped with the same machine;
4. Carrying a drive mechanism, occupying a small plane space, easy to install.

Details Show

Working principle

When the plate feeder works, the electro motor and the reducer drives the sprocket with alveolus structure to rotate, so that the hauling chain that engages with the chain wheel will drag the material trough in which there are materials to move forward. The supporting device-hauling chain moves on the thrust wheel and the riding wheel props with the conveying trough to bear the weight of the materials and the running devices. The materials are pushed from the storage bin above the tail to the conveying trough, and move along with it to the chute mouth with housing and then are discharged.

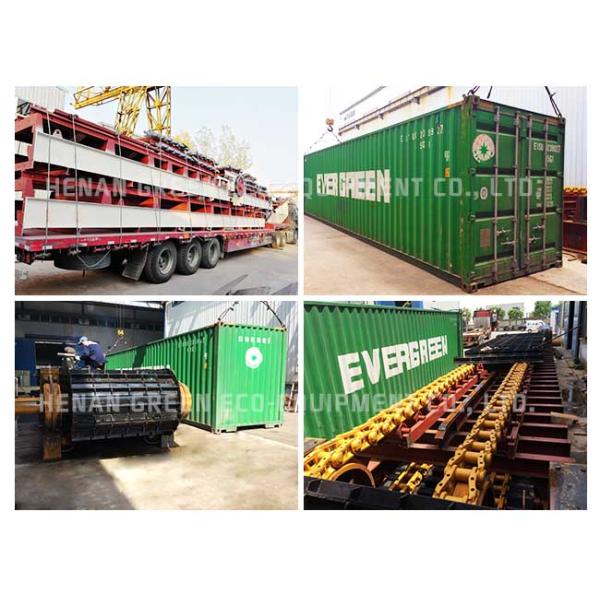

Packing & Shipping

Well-designed packing and transportation ensure that the products can be delivered intactly to our customers.

Customer case

Heavy Duty Apron Plate Feeder 900t/h

Automatic Ore Feeding Apron Plate Feeder

Traction Chain Apron Feeder
