Professional Inclined 90 Degree Skirt Rubber Conveyor

  • 1
  • 2

Brand Name : Green Eco-Equipment

Model Number : DJ

Certification : ISO9001:2008/CE

Place of Origin : Henan, China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 20 sets per month

Delivery Time : 10~15 work days after receiving fullpayment.

Packaging Details : In Bulk/Tray/Wooden Case/As Customer's Requirement

Name : Skirt rubber belt conveyor

Frame Material : Carbon Steel/Stainless Steel

Belt Material : PVC PU Rubber Steel Rubber

Material Feature : Heat Resistant

Slant Angle : Max. 90 degree

Dimension(L*W*H) : As Customer's Request

Application : Grain Storage, Mining, Cement, Coal Industries.

After-sales Service Provided : Field installation, commissioning and training

Contact Now

Professional inclined skirt rubber belt conveyor manufacturer

Product Description

Professional inclined skirt rubber belt conveyor with the wavy guard and diaphragm plate belt especially suits for large inclined conveying (the max inclined angle can rise up to 90°; and the biggest conveying material particle size is 300 mm).It is widely used in electric power, chemical, metallurgy, mining, coal, grain, ports, building materials, light industry and others. According to the transportation technical request, it can work with more than one machine or other conveying equipment in horizontal or inclined conveying system. It can used for transporting loose materials whose density is 0.5 t/m³ ~ 2.5t/m³ and packed products.

Professional Inclined 90 Degree Skirt Rubber Conveyor


Main Parameters

Belt width (mm)
Sidewall height (mm)
Diaphragm height (mm)
Speed (m/s)
Nominal angle(°)
0.8
0~30
500
80
100
120
75
90
110
1
35~40
650
100
120
160
90
110
160
1.25
45~50
800
120
160
200
110
150
180
1.6
55~60
1000
160
200
240
160
180
220
2
65~70
1200
200
240
300
180
220
180
2.5
75~80
1400
240
300
400
220
280
360
3.15
85~90

Remark: The conveying capacity in the form is based on the belt speed 1m/s, and it will vary according to the belt speed.

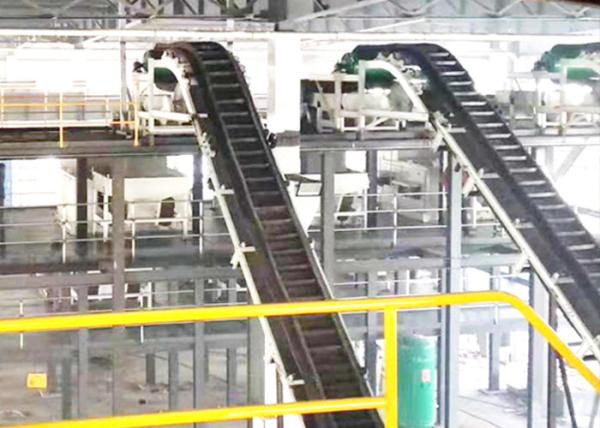

Customer case

Professional Inclined 90 Degree Skirt Rubber Conveyor

Packing & Shipping

Packaging:Usually wooden case for small size.Container for big size.

Delivery time:5-7 working days for small size.10-15 Working days for big size.

Professional Inclined 90 Degree Skirt Rubber Conveyor

About us

Green Eco-Equipment had earned many certificates about the whole strength and had cooperated with many group companies in the whole world. There is a systematized program in our company, every order will strictly according to the standard system to show our customer the best immediately.

Professional Inclined 90 Degree Skirt Rubber Conveyor

How to confirm model? CONTACT US NOW!!!

Our factory warmly welcome your customized order. You can decide any kind of conveyor belt as you like.
We will be appreciated if you can provide the following specification:
1. Conveyor belt type
2. Top cover thickness
3. Bottom cover thickness
4. No.of plies
5. Width of the conveyor belt
6. Grade


If you are not sure for any of above, we can recommend for you.
Once we get above information we will quote exact price at soonest time.
